Description:
Manufacturer : Festo
Product No. : DSBC-40-100-PPVA-N3
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

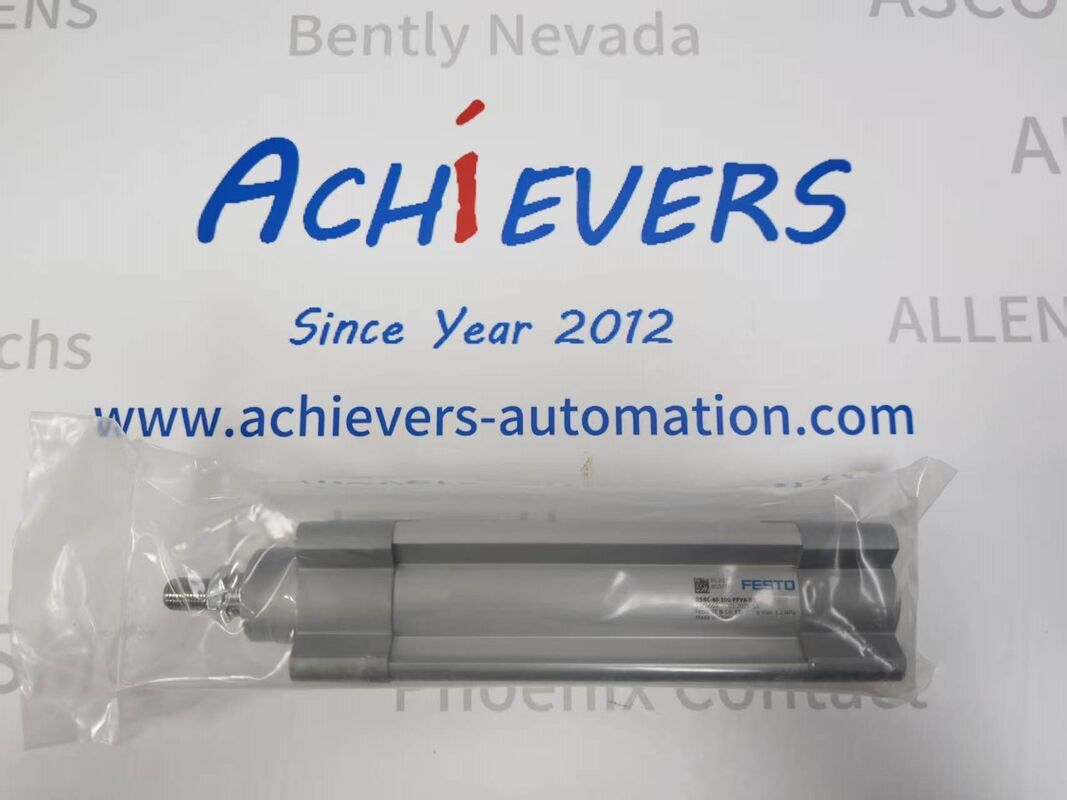

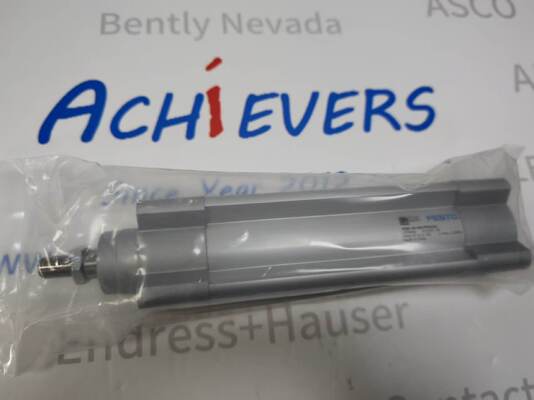

The Festo DSBC-40-100-PPVA-N3 is a universal double-acting tie rod standard pneumatic cylinder from Festo DSBC metric series, fully compliant with ISO 15552 global dimensional standards for full interchangeability with other brand ISO cylinder.
This unit features a 40mm piston bore paired with a fixed 100mm working stroke, equipped with bidirectional adjustable pneumatic cushioning to absorb impact energy at both end positions and reduce mechanical vibration during reciprocating movement. The single-ended piston rod adopts M12×1.25 external male thread for direct connection with tooling fixtures, push plates and mechanical transfer arms. Integrated profile sensor slots on the cylinder barrel allow convenient mounting of Festo proximity switches for stroke position feedback signals to PLC control systems.
Detail:
| Parameter Item | Technical Specification |
|---|---|

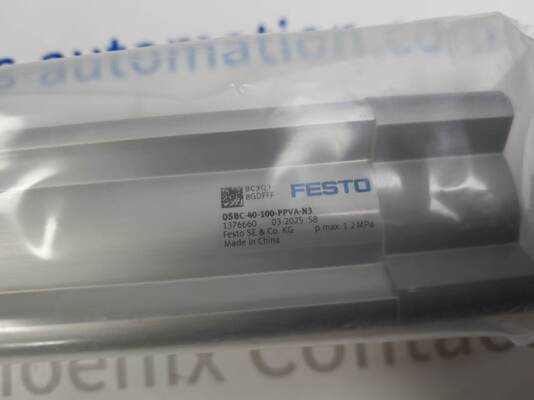

| Full Part Number | DSBC-40-100-PPVA-N3 |
| Manufacturer | Festo |
| Official Order Code | 1376660 |
| Product Series | DSBC ISO 15552 Standard Pneumatic Cylinder |
| Operation Type | Double Acting (Single Piston Rod) |
| Piston Bore Diameter | 40 mm |
| Rated Working Stroke | 100 mm |
| Piston Rod Thread Spec | M12 × 1.25 Male External Thread |
| Pneumatic Connection Port | G1/4 Female Thread (ISO 228-1) |
| End Cushioning Type | Adjustable Pneumatic Cushion, Both Ends |
| Cushioning Length Per Side | 19 mm |
| Max Impact Energy at End Stop | 0.7 J |
| Theoretical Forward Force @ 6 Bar | 754 N |
| Theoretical Retract Force @ 6 Bar | 633 N |
| Operating Pressure Range | 0.6 – 12 bar (0.06 – 1.2 MPa) |
| Total Net Weight | 1110 g |
| Base Weight (0 mm Stroke) | 740 g |
| Additional Mass Per 10 mm Stroke | 37 g |
| Mounting Mode | Multi-position mounting via standard ISO 15552 accessories |
| Position Detection Support | Built-in profile slot for proximity switch installation |
| Specification Item | Technical Value |
|---|---|
| Cylinder Barrel Material | Smooth-Anodized Wrought Aluminium Alloy |
| End Cover Material | Coated Die-Cast Aluminium |
| Piston Rod Material | High-Alloy Hardened Steel |
| Seal & Wiper Material | TPE-U (PU) Polyurethane |
| Cushion Boss Material | POM Plastic |
| Operating Medium | Compressed Air ISO 8573-1:2010 [7:4:4] |
| Lubrication Compatibility | Lubricated or non-lubricated air (consistent medium required) |
| Operating Ambient Temperature | -20 °C ~ +80 °C |
| Storage Temperature Range | -20 °C ~ +80 °C |
| Corrosion Resistance Class | CRC 2 (Moderate Corrosion Stress) |
| PWIS Compliance | VDMA24364-B1/B2-L, Paint-Wetting-Impairment Substance Free |
| Cleanroom Classification | ISO 14644-1 Class 6 |
| Standard Compliance | ISO 15552, RoHS Directive Compliant |
| Allowable Mounting Orientation | Unlimited, any horizontal/vertical installation angle |
| Anti-Vibration Performance | Stable reciprocating motion under standard workshop mechanical vibration |
| Service Cycle Lifespan | Over 10 million full stroke cycles under rated working pressure |
Brand
Festo is a German automation company based in Esslingen am Neckar, Germany.[1] Festo produces and sells pneumatic and electrical control systems and drive technology for factories and process automation. Festo Didactic also offers industrial education and consultation services and is one of the sponsors and partners of the WorldSkills Mechatronics Competitions. Sales subsidiaries, distribution centres and factories of Festo are located in 61 countries worldwide. The company was named after its founders Albert Fezer and Gottlieb Stoll.
Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
