제품 상세 정보:
결제 및 배송 조건:
|
| 루프 수량 모니터링: | 4~8 루프(구성 가능) | 입력 신호: | AC 전류: 0~5A; 교류 전압: 0~450V |
|---|---|---|---|
| 측정 정확도: | 전류: ±0.5% FS; 전압: ±0.5%FS | 통신 프로토콜: | 모드버스 RTU(RS-485) |
| 보호 등급: | IP20 (패널 장착) | 작동 습도 범위: | 10%~90% RH (불응축) |
| 표시하다: | LCD 디스플레이, 백라이트 옵션 | ||
| 강조하다: | E+H FTL51B liquid level switch,Liquiphant tuning fork sensor,Vibronic point level switch |
||
Product Details:

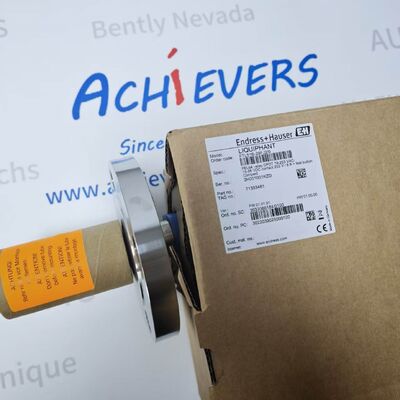

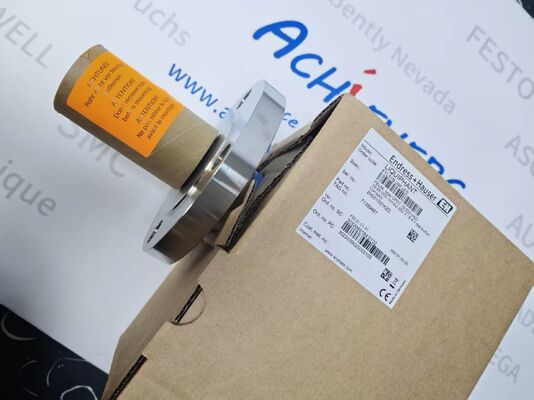

Manufacturer : Endress+Hauser
Product No. : FTL51B-29FJ2/0
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Parameter Item | Technical Specification |
|---|---|
| Full Model Code | FTL51B-29FJ2/0 |
| Manufacturer | Endress+Hauser (E+H) |
| Product Series | Liquiphant FTL51B Vibronic Liquid Level Switch |
| Measuring Principle | Piezoelectric Excited Tuning Fork Resonance |
| Wetted Material | 316L Stainless Steel, Surface Ra ≤ 3.2 μm |
| Process Connection | G1 External Thread (ISO 228-1) |
| Probe Structure | Straight Extension Tube Fork Probe |
| Electronic Insert Type | FEL60H, 2-Wire HART 4–20mA SIO Output |
| Supply Voltage Range | 10.5 VDC ~ 35 VDC, SELV/PELV power supply required |
| Signal Mode | Selectable 8/16mA limit switch or 4–20mA continuous frequency output |
| HART Protocol Version | HART 7 digital communication |
| Wireless Diagnostic | Built-in Bluetooth for SmartBlue mobile readout |
| Functional Test Method | External magnetic test pin / local test button |
| Electrical Cable Entry | M20 plastic cable gland |
| Transmitter Housing | Single-compartment reinforced plastic enclosure |
| Minimum Detectable Liquid Density | 0.5 g/cm³ |
| Maximum Allowed Medium Viscosity | 10,000 mPa·s |
| Net Weight | 950 g |
| Switching Hysteresis | Adjustable via HART parameter configuration |
| Specification Item | Technical Value |
|---|---|
| Process Medium Temperature | -50 °C ~ +150 °C |
| Ambient Operating Temperature | -40 °C ~ +70 °C |
| Storage Temperature Range | -40 °C ~ +70 °C |
| Process Operating Pressure | Full Vacuum up to 100 bar absolute |
| Ingress Protection Rating | IP66 / IP68, NEMA Type 4X / 6P |
| Functional Safety Certification | SIL 2 certified per IEC 61508, WHG overfill compliant |
| Anti-Interference Performance | Unaffected by foam, bubbles, vibration, medium buildup |
| Supported Safety Logic | MAX (Overfill Alarm) / MIN (Dry-Run Protection) selectable |
| Hazardous Area Version | Non-explosion standard design; Ex variants available separately |
| Global Certifications | CE, RoHS, cULus, marine approval options |
| Periodic Proof Test | Guided SIL test wizard via SmartBlue App |
| Allowed Cable Cross-Section | 0.5 ~ 2.5 mm² for terminal wiring |
| Diagnostic Functions | Fork fault detection, supply voltage monitoring, NAMUR NE 107 fault reporting |
| Service Characteristic | Maintenance-free, no moving mechanical wear parts |
Brand
E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.
Company Introduction:
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
