제품 상세 정보:
결제 및 배송 조건:
|
| 조임 토크: | 0.6 별거 안 해 | 출력 극성: | DC |
|---|---|---|---|
| 선형성 오류: | 0.1 % 0.1 % | 건축 유형: | M12 |
| 인터페이스 유형: | RS-485, 2선 멀티드롭 | 대상 크기: | 0.3 밀리미터 |
| 전환 주파수: | 10Hz 이하 | 길이: | 63.5mm |
| 출력 전류: | 4~20mA |
Product Details:
Manufacturer : Pepperl + Fuchs

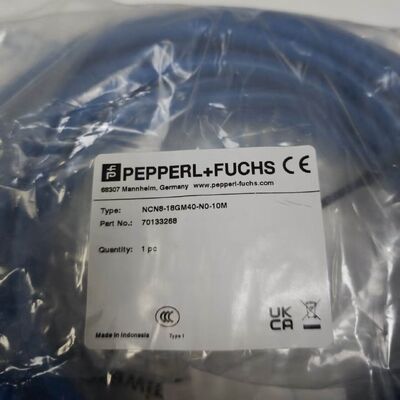

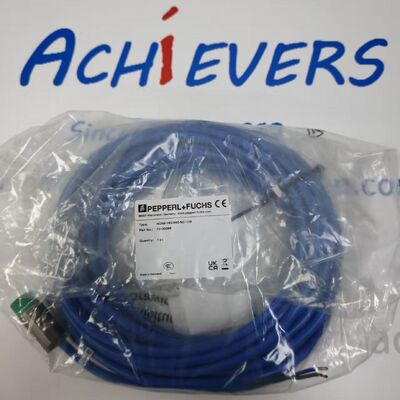

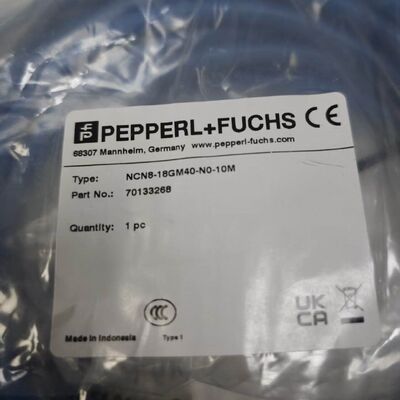

Product No. : NCN8-18GM40-N0-10M
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Spec Category | Exact Parameter Value for NCN8-18GM40-N0-10M |
|---|---|
| Full Model Code | NCN8-18GM40-N0-10M |
| Product Series | Pepperl+Fuchs Comfort Series Inductive Sensor |
| Detection Principle | Inductive metal target detection |
| Sensing Installation Type | Non-flush mounting |
| Rated Nominal Sensing Distance (Sn) | 8 mm |
| Assured Safe Operating Distance (Sa) | 0 ~ 6.48 mm |
| Actual Working Sensing Range (Sr) | 7.2 ~ 8.8 mm (Typical 8 mm) |
| Switching Function | NAMUR Normally Closed (NC) |
| Output Standard | IEC 60947-5-6 NAMUR two-wire interface |
| Nominal Operating Voltage (Uo) | 8 V DC |
| Switching Frequency | 0 ~ 300 Hz |
| Hysteresis Range | 1 ~ 15 % (Typical 5 %) |
| Reduction Factor rAl (Aluminum) | 0.42 |
| Reduction Factor rCu (Copper) | 0.40 |
| Reduction Factor r1.4305 (Stainless Steel) | 0.72 |
| Current Consumption (Target Not Detected) | ≥ 3 mA |
| Current Consumption (Target Detected) | ≤ 1 mA |
| Circuit Protection | Reverse polarity protection, short-circuit protection |
| Status Indicator | 360° omnidirectional yellow LED switching signal light |
| Functional Safety Grade | SIL 2 compliant per IEC 61508 |
| MTTFd Value | 1739 years |
| Rated Mission Time (TM) | 20 years |
| EMC Compliance | IEC / EN 60947-5-2 industrial electromagnetic standard |
| Physical & Environmental Item | Standard Technical Data |
|---|---|
| Housing Shape & Diameter | M18 cylindrical thread, total length 124 mm |
| Housing Material | Stainless steel 1.4305 (AISI 303) |
| Sensing Face Material | Reinforced PBT plastic |
| Protection Rating | IP66 / IP67 dustproof & waterproof |
| Electrical Connection | Fixed 10 m PVC cable |
| Cable Outer Diameter | 6 mm ± 0.2 mm |
| Minimum Cable Bending Radius | > 10 × cable outer diameter |
| Operating Ambient Temperature | -25 °C ~ +100 °C (-13 °F ~ 212 °F) |
| Storage & Transport Temperature | -40 °C ~ +100 °C (-40 °F ~ 212 °F) |
| Relative Humidity Tolerance | 5 % ~ 95 %, non-condensing |
| Vibration Resistance Standard | IEC 60068-2-6 industrial vibration test |
| Mounting Thread | M18 × 1 cylindrical thread |
| Net Unit Weight | Approx. 165 g |
| Cable Wire Specification | Multi-core copper wire with pre-crimped wire end ferrules |
| Hazardous Area Compatibility | Suitable for ATEX / IECEx explosive atmosphere zones with matched NAMUR amplifiers |
Brand
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
