제품 상세 정보:
결제 및 배송 조건:
|
| 제조업체: | SMC | 샤프트 버전: | 테이퍼 샤프트 |
|---|---|---|---|
| 쿠셔닝: | 조절 가능 (양쪽 끝) | 압력 범위: | 0.1~0.7MPa |
| 정격전압: | 24 VDC | 내식성: | 가벼운 화학 물질 및 오일에 내성 |
| 애플리케이션: | 소재 테스팅 | 압력 조정: | 유형 완화 (자동 변환) |
| 강조하다: | SMC stainless steel double-acting cylinder,mini double-acting air cylinder,SMC CDJ2B20-25Z pneumatic cylinder |
||
Product Details:
Manufacturer : SMC
Product No. : CDJ2B20-25Z
https://www.achievers-automation.com More Products

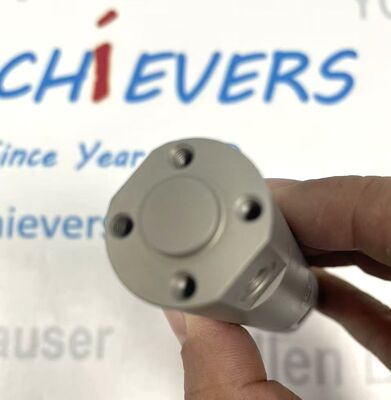

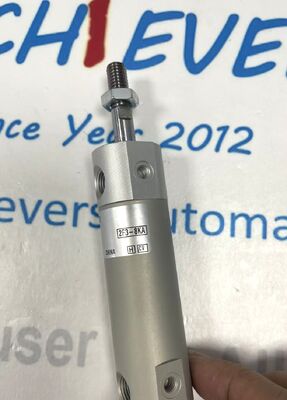

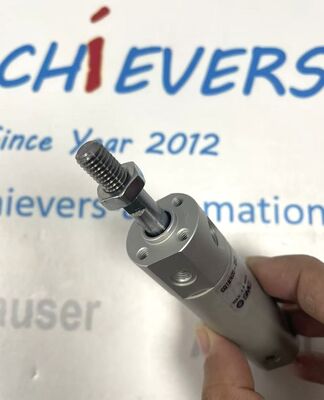

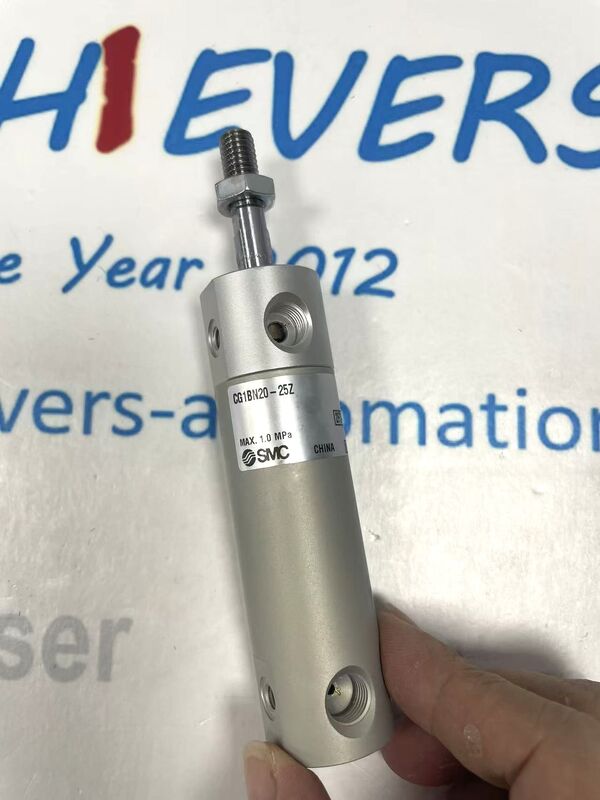

Designed with a compact form factor, this double-acting cylinder features a 20mm stainless steel cylinder bore and 25mm standard stroke, delivering reliable linear actuation with consistent force output. Constructed with a corrosion-resistant stainless steel 缸筒 (barrel) and anodized aluminum end caps, it excels in harsh environments where durability and resistance to moisture, dust, and chemicals are critical.
Description:
|
Parameter
|
Details
|
|
Product Model
|
SMC CDJ2B20-25Z
|
|
Product Series
|
CDJ2B Series (Mini Pneumatic Cylinder)
|
|
Action Type
|
Double-acting (reciprocating linear motion)
|
|
Bore Size
|
20 mm (0.79 inches)
|
|
Standard Stroke
|
25 mm (0.98 inches)
|
|
Construction Material
|
- Cylinder Barrel: Stainless steel>- End Caps: Anodized aluminum Rod: Stainless steel Bearings: Oil-impregnated sintered bronze
|
|
Operating Pressure Range
|
0.05 MPa (0.73 psi) – 0.9 MPa (13.05 psi)
|
|
Maximum Allowable Pressure
|
1.35 MPa (19.58 psi)
|
|
Operating Temperature Range
|
0 °C to 70 °C (32 °F to 158 °F)
|
|
Speed Range
|
50 – 500 mm/s (adjustable via flow control valves)
|
|
Theoretical Force Output
|
- Extending: 294 N (at 0.9 MPa)- Retracting: 226 N (at 0.9 MPa)
|
|
Cushioning
|
Built-in rubber cushioning (adjustable optional for precise deceleration)
|
|
Magnetic Function
|
Optional magnetic piston (for compatibility with SMC magnetic switches: D-M9B, D-M9N, etc.)
|
|
Mounting Configurations
|
Compatible with multiple mounting types: Basic type, FA (front flange), FB (back flange), CA (foot), CB (foot), LB (ear), Y (yoke), I (inline), TC (clevis)
|
|
Port Size
|
R1/8 (BSPP) or NPT 1/8 (threaded connection)
|
|
Protection Rating
|
IP65 (dust-tight and protected against water jets from any direction)
|
|
Dimensions (Bore x Stroke x Length)
|
20 mm x 25 mm x 118 mm (approximate overall length, basic type)
|
|
Net Weight
|
Approximately 180 g (0.40 lbs)
|
|
Lubrication Requirement
|
Lubrication-free (oil-impregnated bearings eliminate need for air line lubrication)
|
|
Certifications & Compliance
|
CE, RoHS compliant; meets ISO 6431 and JIS B8370 standards
|
Brand
