제품 상세 정보:
결제 및 배송 조건:
|
| 공급 전압 UB: | DC 10 V ... 30 V 1) | 전송 축: | 똑바로 |
|---|---|---|---|
| 연결성: | 유선 및 무선 | 인코더: | 절대 인코더 |
| 응답 시간: | <500 µs 4) | 해결: | ≥ 0.18 mm |
| 재현성: | ≤ 2 % 2) 3) | ||
| 강조하다: | Weidmuller PRO MAX3 switch-mode power supply,industrial switch-mode power supply,PRO MAX3 power supply with warranty |
||
Product Details:
Manufacturer : Weidmuller
Product No. : PRO MAX3
https://www.achievers-automation.com More Products

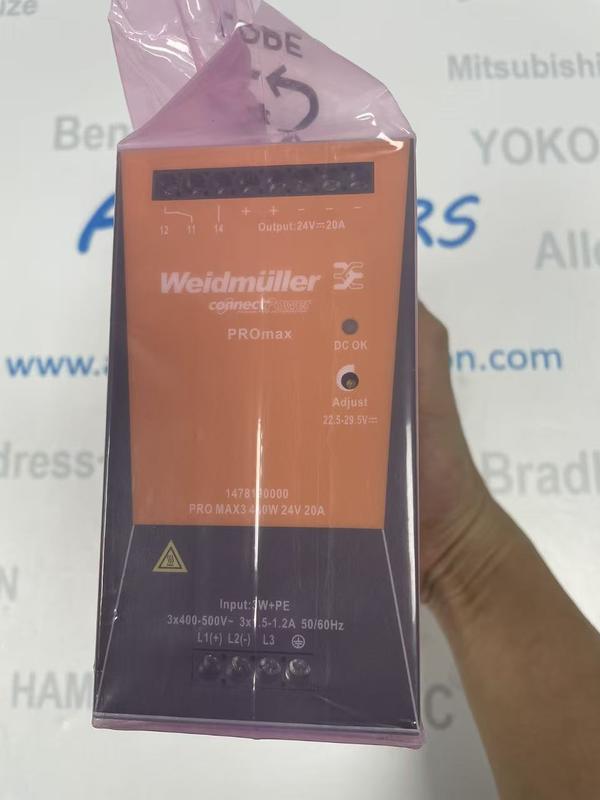

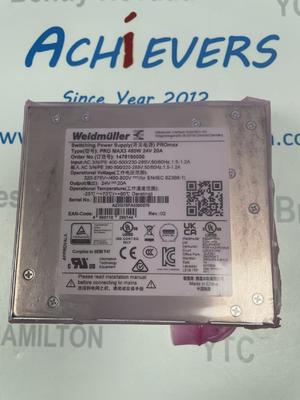

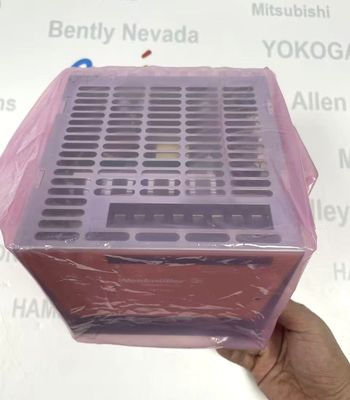

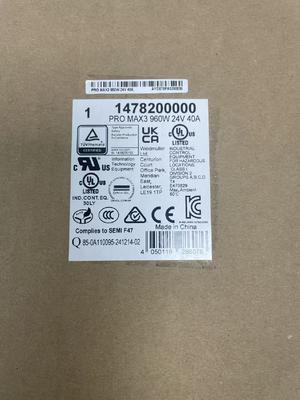

The Weidmuller PRO MAX3 series represents a premium line of switch-mode power supplies engineered for demanding industrial automation environments. Designed to deliver reliable, efficient power even under extreme conditions, these units excel in continuous overload scenarios (up to 20%) and short-term peak loads (300%), making them ideal for critical applications in control cabinets and industrial facilities worldwide. With a compact form factor and wide operating temperature range, the PRO MAX3 series combines durability, flexibility, and high performance to meet the rigorous requirements of modern industrial systems.
Description:
| Model Variants | PRO MAX3 120W 24V | 5A output current, 24V DC nominal output |
| PRO MAX3 240W 24V | 10A output current, 24V DC nominal output | |
| PRO MAX3 480W 24V | 20A output current, 24V DC nominal output | |
| PRO MAX3 960W 24V | 40A output current, 24V DC nominal output | |
| Input Parameters | AC Input Voltage Range | 3x 320-575V AC / 2x 360-575V AC (3-phase) |
| DC Input Voltage Range | 450-800V DC | |
| Frequency Range | 45-65Hz (AC input) | |
| Power Factor (Typical) | 0.8 (at 400V input, 25°C ambient, 480W output) | |
| Output Parameters | Nominal Output Voltage | 24V DC ±1% (adjustable via potentiometer) |
| Output Voltage Range | 22.5V (min) - 29.5V (max) | |
| Residual Ripple | <50mVss (at nominal voltage, full load) | |
| AC Failure Bridging Time | Minimum 20ms (at nominal current) | |
| Physical Dimensions | Width | 70mm (2.756 inches) |
| Height | 130mm (5.118 inches) | |
| Depth | 150mm (5.905 inches) | |
| Net Weight | 1,600g (for 480W model) | |
| Environmental Compliance | RoHS Status | Compliant (with exemptions 7a, 7ci) |
| REACH Compliance | Meets SVHC requirements (Lead: 7439-92-1) | |
| SCIP Identification | 6D8CDF22-8230-4AF8-86C8-3558C716666D | |
| Protection & Safety | Protection Features | Short-circuit protection, reverse voltage protection |
| Surge Voltage Category | II | |
| Earth Leakage Current (Max) | 3.5mA | |
| Installation & Operation | Mounting Position | Horizontal on TS35 mounting rail (50mm clearance top/bottom for airflow) |
| Connection System | Screw connection (input/output) | |
| Status Indication | LED (red/green) + relay (green: ≥21.6V, relay on; red: ≤20.6V, relay off) | |
| Reliability | MTBF (Min) | 642,000 hours (per SN 29500 standard, 25°C ambient, 400V input, 480W output) |
